LIFT AND SLIDE DOOR SYSTEM

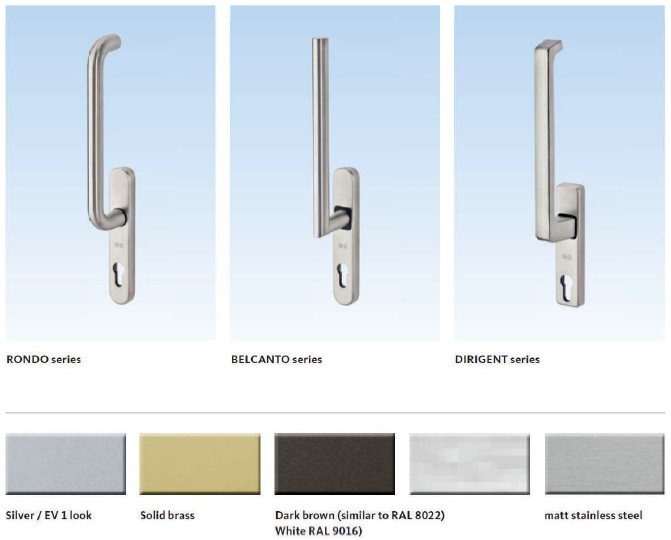

GU DIRIGENT LIFT & SLIDE HANDLE INSIDE & OUTSIDE

GU PATIO LIFT & SLIDE RUNNERS 934

The GU-934 bogies are used as standard with sash weights up
to 350 kg and can be used with sash weights up to 600 kg in
combination with the HS LiftUnit Heavy with tandem bogie

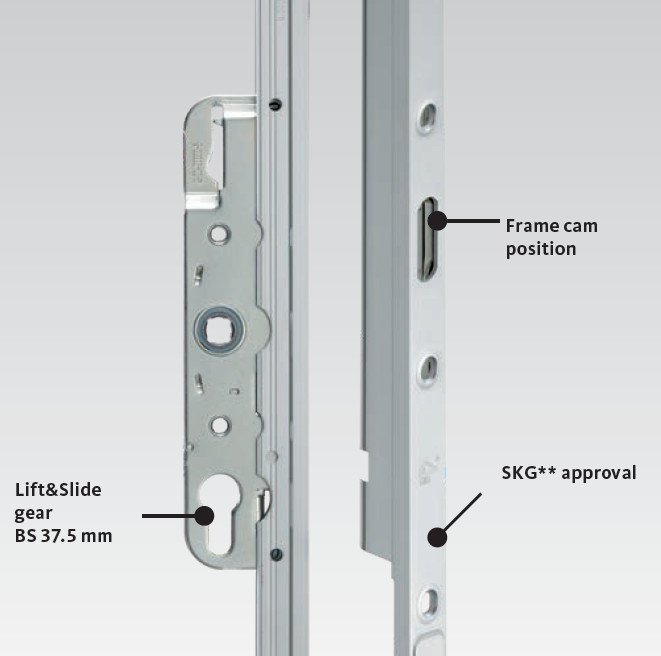

Lift&Slide gears

Extremely resilient and durable
The Lift&Slide gear is the pivotal point of Lift&Slide elements and
effects opening and closing of the sliding sash via the hardware.
Gretsch-Unitas Lift&Slide gears are known for their precision
and quality, outstanding resilience and durability. Their design
has been optimised over many decades and sets standards in the
market.
All drive-gears come with the SKG** approval as standard and
are supplied ex works with a PC hole. This means that a profile
cylinder can also subsequently be installed in combination with
a turn handle with PC hole, without having to replace the gear.
The follower of the turn handle is equipped with a plastic insert
as standard which receives the square spindle of the turn handle
without play and therefore avoids noise during operation and also
signs of wear.

HS LiftUnit

Makes light work of lifting heavy sashes
The ever increasing size and weight of the glazing in Lift&Slide
elements means that greater operating forces are required to move
them – the handle torque increases noticeably and the Lift&Slide
door becomes more difficult to operate. The HS LiftUnit supports
the bogie when lifting the active sash. This reduces the torque at
the handle by 50% which is accompanied by a noticeable increase
in operating comfort for the user.
